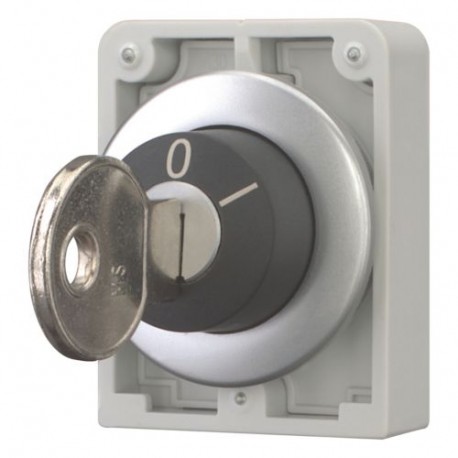

EATON - MOELLER M30C-FWRS-MS8 M30C-FWRS-MS8 187061 Y7-187061 EATON ELECTRIC Key-operated actuators, Flat Front, not suitable for master ke.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWRS-MS8 187061 Y7-187061 EATON ELECTRIC Key-operated actuators, Flat Front, not suitable for master ke..

M30C-FWRS-MS8

187061

Y7-187061

EATON - MOELLER

1 Pcs.

Key-operated actuators, Flat Front, not suitable for master key systems, 2 positions, maintained, MS8 M30C-FWRS-MS8 Eaton Moeller® series M30 Key-operated actuator, Flat Front, maintained, 2 positions, MS8, Key withdrawable: 0, I, Metal bezel Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, maintained, Not suitable for master key systems, 2 positions, Lock mechanism: MS8, I, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The M30C-FWRS-MS8 Eaton Moeller key-operated actuator provides secure access management for industrial automation equipment, preventing unauthorized mode changes on control consoles. This two-position maintained unit integrates into standard 30 mm panel cutouts with a robust metal bezel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions: 2
  • Type of control element: Key
  • Suitable for lighting: No
  • Colour control element: Black
  • Construction type lens: Round
  • Hole diameter: 30 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Switching function latching: Yes
  • Spring-return: No
  • With front ring: Yes
  • Material front ring: Metal
  • Colour front ring: Chrome
  • Degree of protection (IP), front side: IP66
  • Degree of protection (NEMA): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Key-operated actuator
Catalog Number
187061
Model Code
M30C-FWRS-MS8
EAN
4015081821242
Product Length/Depth
36 mm
Product Height
67 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
IEC/EN 60947
VDE 0660
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
