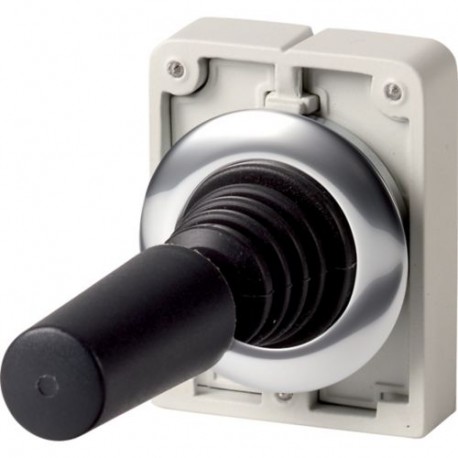

EATON - MOELLER M30C-FWRJS2H M30C-FWRJS2H 187078 Y7-187078 EATON ELECTRIC Joystick, flat front, maintained, horizontal, metal shaft View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWRJS2H 187078 Y7-187078 EATON ELECTRIC Joystick, flat front, maintained, horizontal, metal shaft

M30C-FWRJS2H

187078

Y7-187078

EATON - MOELLER

1 Pcs.

Joystick, flat front, maintained, horizontal, metal shaft M30C-FWRJS2H Eaton Moeller® series M30 Joystick, RMQ-Titan, horizontally momentary, with metal shaft, 2 positions, Metal bezel Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, with metal shaft, 2 positions, Degree of Protection: IP66, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Function: maintained, Horizontal, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A joystick, flat front, maintained, horizontal, metal shaft acts as a locked manual operator input control for industrial machines and switchgear cabinets. These devices maintain their switched position without constant operator pressure, making them suitable for continuous operational modes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 30 mm
  • Joy stick length (EF006524): 66 mm
  • Number of actuation directions (EF002425): 2
  • Number of switch positions (EF000231): 1
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): No
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Joystick
Catalog Number
187078
Model Code
M30C-FWRJS2H
EAN
4015081821365
Product Length/Depth
36 mm
Product Height
93 mm
Product Width
46 mm
Product Weight
0.06 kg
Warranty
Certifications
IEC/EN 60947
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
