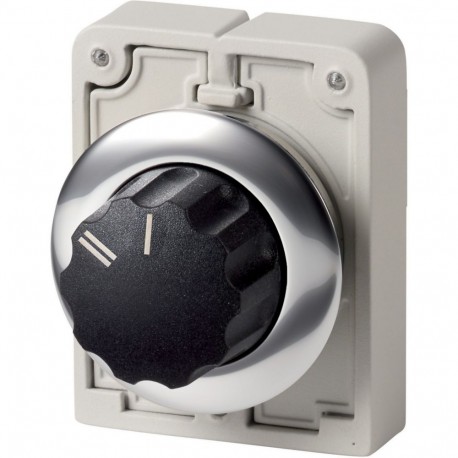

EATON - MOELLER M30C-FWR-X92 M30C-FWR-X92 187114 Y7-187114 EATON ELECTRIC Changeover switches, Flat Front, with rotary head, labeled, 2 p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWR-X92 187114 Y7-187114 EATON ELECTRIC Changeover switches, Flat Front, with rotary head, labeled, 2 p..

M30C-FWR-X92

187114

Y7-187114

EATON - MOELLER

1 Pcs.

Changeover switches, Flat Front, with rotary head, labeled, 2 positions, maintained M30C-FWR-X92 Changeover switch, RMQ-Titan, With rotary head, maintained, 2 positions, inscribed, Metal bezel, II I Changeover switch, Product range: RMQ-Titan, Single unit, Design: With rotary head, maintained, 2 positions, inscribed, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Changeover switch, RMQ-Titan, With rotary head, maintained, 2 positions, inscribed, Metal bezel, II I
Changeover switch, Product range: RMQ-Titan, Single unit, Design: With rotary head, maintained, 2 positions, inscribed, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

General specifications
Product name
Eaton Moeller® series M30 Changeover switch
Part no.
M30C-FWR-X92
EAN
4015081821631
Product Length/Depth
36 millimetre
Product height
47 millimetre
Product width
46 millimetre
Product weight
0.042 kilogram
Certifications
VDE 0660
IEC/EN 60947
UL Listed
CE marking
IEC/EN 60947-5
GL
CSA file No. 012528
CSA-C22.2 No. 94-91
DNV
CSA-C22.2 No. 14-05
CSA certified
UL File No.: E29184
UL 508
UL Category Control No.: NKCR
CSA Class No.: 3211-03
Product Tradename
M30
Product Type
Changeover switch
Product Sub Type
None
Features & Functions
Bezel color
Titanium
Bezel material
Metal
Design
With rotary head
Flat front
Fitted with:
Front ring
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Inscription
Inscribed
General information
Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
30 mm
Operating frequency
2000 Operations/h
Operating torque
0.3 N·m
Product category
RMQ-Titan
Size
Front dimensions: Ø 36 mm
Switching angle
60 °
Type
Selector switch actuator
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Communication
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Actuator
Actuator color
Black
Actuator function
Switching function latching
Maintained
Actuator type
Turn button
Number of switch positions
2
Contacts
Force for positive opening - min
0 N

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Front element for selector switch (EC000222)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for selector switches (ecl@ss13-27-37-12-13 [AKF031019])
Number of switch positions
2
Type of control element
Turn button
Suitable for illumination
No
Colour control element
Black
Colour indicator light cap
Other
Construction type lens
Round
Hole diameter
30 mm
Width opening
0 mm
Height opening
0 mm
Switching function latching
Yes
Spring-return
No
With front ring
Yes
Material front ring
Metal
Colour front ring
Titanium
Degree of protection (IP), front side
IP66
Degree of protection (NEMA)
4X, 13

ETIM for 187114 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 2
Type of control element (EF006976) Rotating button
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Chrome
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13
