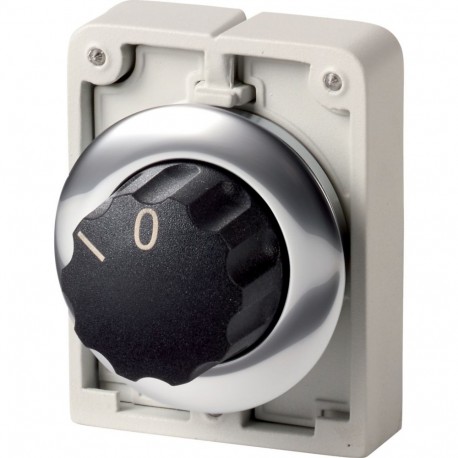

EATON - MOELLER M30C-FWR M30C-FWR 187088 Y7-187088 EATON ELECTRIC Changeover switches, Flat Front, with rotary head, labeled, 2 posit.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWR 187088 Y7-187088 EATON ELECTRIC Changeover switches, Flat Front, with rotary head, labeled, 2 posit..

M30C-FWR

187088

Y7-187088

EATON - MOELLER

1 Pcs.

Changeover switches, Flat Front, with rotary head, labeled, 2 positions, maintained M30C-FWR Eaton Moeller® series M30 Changeover switch, RMQ-Titan, With rotary head, maintained, 2 positions, inscribed, Metal bezel Changeover switch, Product range: RMQ-Titan, Single unit, Design: With rotary head, maintained, 2 positions, inscribed, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeover switches part number M30C-FWR from Eaton Moeller provide reliable circuit routing and operational mode selection for industrial machinery. Operators interact directly with panel-mounted rotary switches to manage power distribution, auxiliary circuits, and system workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Rotating button
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Changeover switch
Catalog Number
187088
Model Code
M30C-FWR
EAN
4015081821457
Product Length/Depth
36 mm
Product Height
43 mm
Product Width
46 mm
Product Weight
0.042 kg
Certifications
IEC/EN 60947
VDE 0660
