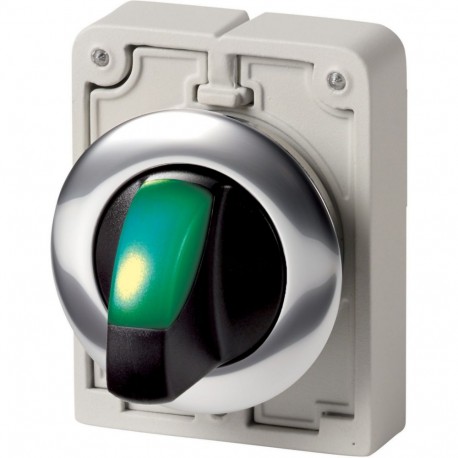

EATON - MOELLER M30C-FWLK3-G M30C-FWLK3-G 187116 Y7-187116 EATON ELECTRIC Illuminated selector switch actuators, Flat Front, with thumb-g.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWLK3-G 187116 Y7-187116 EATON ELECTRIC Illuminated selector switch actuators, Flat Front, with thumb-g..

M30C-FWLK3-G

187116

Y7-187116

EATON - MOELLER

1 Pcs.

Illuminated selector switch actuators, Flat Front, with thumb-grip, green, 3 positions, momentary M30C-FWLK3-G Eaton Moeller® series M30 Illuminated selector switch actuator, RMQ-Titan, With thumb-grip, momentary, 3 positions, green, Metal bezel Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, momentary, 3 positions, Color Thumb-grip: green, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M30C-FWLK3-G illuminated selector switch actuator is a flat-front operator control designed for machinery consoles requiring clear state indication. Technicians deploy these components to direct multi-position functions while providing operators with immediate visual status cues.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Green
  • Colour indicator light cap (EF007165): Green
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Illuminated selector switch actuator
Catalog Number
187116
Model Code
M30C-FWLK3-G
EAN
4015081821655
Product Length/Depth
36 mm
Product Height
47 mm
Product Width
46 mm
Product Weight
0.042 kg
Certifications
IEC/EN 60947
VDE 0660
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
