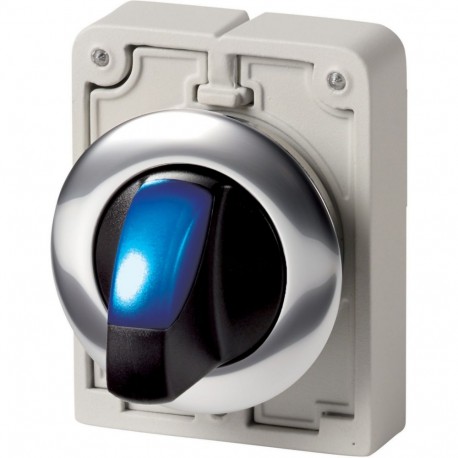

EATON - MOELLER M30C-FWLK3-B M30C-FWLK3-B 187115 Y7-187115 EATON ELECTRIC Illuminated selector switch actuators, Flat Front, with thumb-g.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWLK3-B 187115 Y7-187115 EATON ELECTRIC Illuminated selector switch actuators, Flat Front, with thumb-g..

M30C-FWLK3-B

187115

Y7-187115

EATON - MOELLER

1 Pcs.

Illuminated selector switch actuators, Flat Front, with thumb-grip, blue, 3 positions, momentary M30C-FWLK3-B Eaton Moeller® series M30 Illuminated selector switch actuator, RMQ-Titan, With thumb-grip, momentary, 3 positions, Blue, Metal bezel Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, momentary, 3 positions, Color Thumb-grip: Blue, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Illuminated selector switch actuator
Catalog Number
187115
Model Code
M30C-FWLK3-B
EAN
4015081821648
Product Length/Depth
36 mm
Product Height
47 mm
Product Width
46 mm
Product Weight
0.042 kg
Certifications
IEC/EN 60947
VDE 0660
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

ETIM for 187115 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 3
Type of control element (EF006976) Toggle
Suitable for lighting (EF001142) Yes
Colour control element (EF007167) Blue
Colour indicator light cap (EF007165) Blue
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) No
Spring-return (EF001407) Yes
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Chrome
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13

Product Datasheet
