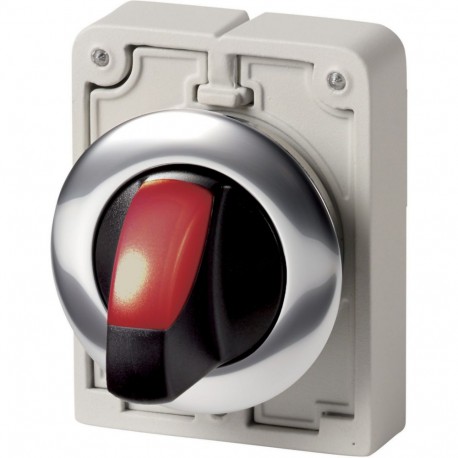

M30C-FWLK-R 187122 Y7-187122 EATON ELECTRIC Illuminated selector switch actuators, Flat Front, with thumb-gr..
M30C-FWLK-R
187122
Y7-187122
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M30C-FWLK-R illuminated selector switch actuator is a flat-front control component utilized in modern industrial automation consoles. The red thumb-grip design provides clear visual feedback and reliable multi-position operational control.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Red
- Colour indicator light cap (EF007165): Red
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC/EN 60947
CSA file No. 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
Features & Functions
Flat front
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Momentary
