EATON - MOELLER M30C-FWJS4 M30C-FWJS4 187077 Y7-187077 EATON ELECTRIC Joystick, Flat Front, momentary, vertical View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FWJS4 187077 Y7-187077 EATON ELECTRIC Joystick, Flat Front, momentary, vertical

M30C-FWJS4

187077

Y7-187077

EATON - MOELLER

1 Pcs.

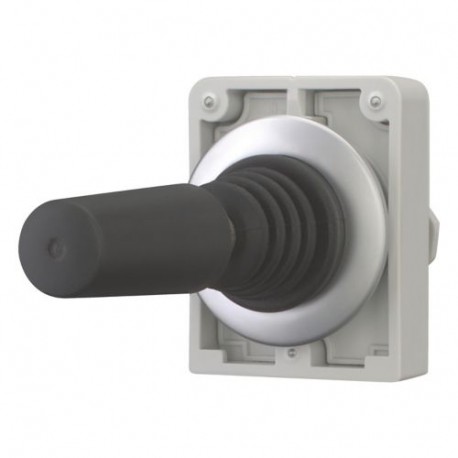

Joystick, Flat Front, momentary, vertical M30C-FWJS4 Eaton Moeller® series M30 Joystick, RMQ-Titan, with metal shaft, 4 positions, Metal bezel Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, with metal shaft, 4 positions, Degree of Protection: IP66, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Function: momentary, in every position, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A joystick, flat front, momentary, vertical serves as a low-profile command actuator on industrial control desks and machine housings. Operators use this hardware to initiate temporary directional controls for automated mechanical axes and positioning systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 30 mm
  • Joy stick length (EF006524): 66 mm
  • Number of actuation directions (EF002425): 4
  • Number of switch positions (EF000231): 1
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): Yes
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Joystick
Catalog Number
187077
Model Code
M30C-FWJS4
EAN
4015081821358
Product Length/Depth
36 mm
Product Height
93 mm
Product Width
46 mm
Product Weight
0.06 kg
Warranty
Certifications
VDE 0660
IEC/EN 60947

Features & Functions

Bezel color
Chrome
Bezel material
Metal
Fitted with:
Filament bulb (24 V)
Retraction in 0-position
Front ring
Metal shaft

General

Degree of protection
IP66
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Opening diameter
30 mm
Operating frequency
2000 Operations/h
Product Category
RMQ-Titan
Size
Front dimensions: Ø 36 mm
Type
Joystick

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated operational current (Ie) at AC-21, 400 V, 415 V
0 A

Communication

Connection to SmartWire-DT
With SWD-RMQ connections
Yes

Actuator

Actuating force
5 N
Actuator function
Momentary
In every position
Number of actuation directions
4

Contacts

Force for positive opening - min
0 N

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
