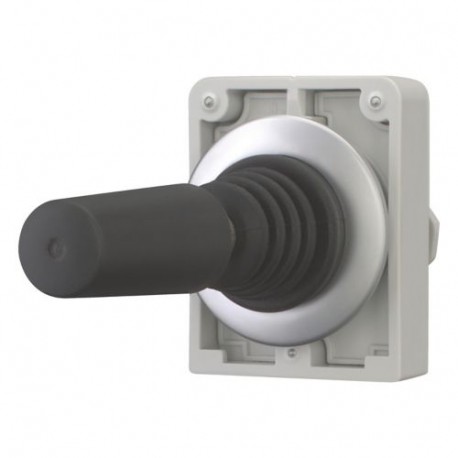

M30C-FWJS2H 197526 Y7-197526 EATON ELECTRIC M30C-FWJS2H
M30C-FWJS2H
197526
Y7-197526
EATON - MOELLER
1 Pcs.
Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller joystick offers reliable horizontal motion control for industrial control panels, giving operators precise command over automated process machinery. Designed with a durable metal shaft, this component ensures long operational life in demanding factory environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
- Centre mounting, hole diameter (EF002424): 30 mm
- Joy stick length (EF006524): 66 mm
- Number of actuation directions (EF002425): 2
- Number of switch positions (EF000231): 1
- Number of make-and-break contacts per direction (EF005599): 0
- With retraction in 0-position (EF002428): Yes
- Locking in 0-position (EF006283): No
- Coder (EF005666): No
- Analogue output signal configurable (EF003236): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Chrome
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
UL Category Control No.: NKCR
DNV
GL
CSA File No.: 012528
UL File No.: E29184
IEC/EN 60947
UL 508
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947-5
UL Listed
CSA certified
CSA-C22.2 No. 14-05
CE marking
Features & Functions
Retraction in 0-position
Front ring
General
NEMA 4X, 13
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Communication
With SWD-RMQ connections
Actuator
Horizontal
