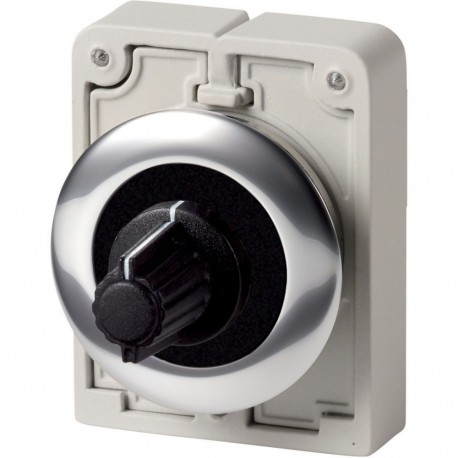

M30C-FR1K-BLANK 187038 Y7-187038 EATON ELECTRIC Potentiometer, Flat Front, without scale/inscription, R 1 kO..
M30C-FR1K-BLANK
187038
Y7-187038
EATON - MOELLER
1 Pcs.
Potentiometer, Flat Front, without scale/inscription, R = 1 kOhm
M30C-FR1K-BLANK
Eaton Moeller® series M30 Potentiometer, flat front, M30, 30.5 mm, Without scale/inscription, R 1 kΩ, P 0.5 W, Metal bezel
Potentiometer, RMQ design: flat front, Part group reference (e.g. DIL): M30, Mounting hole diameter: 30.5 mm, Single unit, Description: 3 individual screw terminals, Accuracy of resistance value: ± 10% (linear), Without scale/inscription, Impedance: R= 1 kΩ, Rated power: P= 0.5 W, Degree of Protection: IP66, Metal bezel, Connection to SmartWire-DT: no, Standards: IEC/EN 60947, VDE 0660
Automation > Potentiometer for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M30 Potentiometer
Catalog Number
187038
Model Code
M30C-FR1K-BLANK
EAN
4015081821044
Product Length/Depth
36 mm
Product Height
63 mm
Product Width
46 mm
Product Weight
0.055 kg
Certifications
IEC/EN 60947
VDE 0660
VDE 0660
Catalog Notes
Without scale/inscription
| Feature Name | Feature Value |
|---|---|
| Resistance (EF002431) | 1000 Ohm |
| Power consumption (EF000346) | 0.5 W |
| Hole diameter (EF000079) | 30 mm |
| Number of revolutions (EF006943) | 1 |
| Type of electric connection (EF003961) | Screw connection |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | Other |
