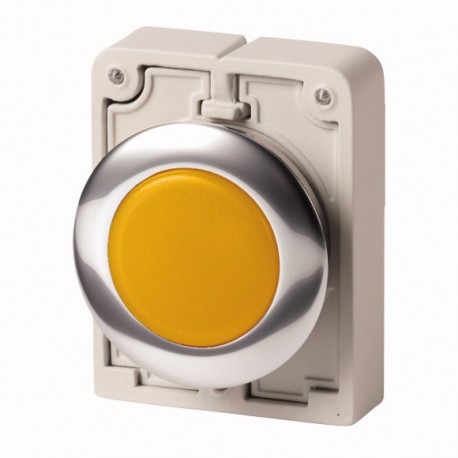

EATON - MOELLER M30C-FL-Y-* M30C-FL-Y-* 183291 Y7-183291 EATON ELECTRIC Indicator light, Flat Front, flush, yellow, individual facility .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FL-Y-* 183291 Y7-183291 EATON ELECTRIC Indicator light, Flat Front, flush, yellow, individual facility ..

M30C-FL-Y-*

183291

Y7-183291

EATON - MOELLER

1 Pcs.

Indicator light, Flat Front, flush, yellow, individual facility for inscription M30C-FL-Y-* Indicator light, RMQ-Titan, Flat, yellow, individual facility for inscription, Metal bezel Indicator light, Product range: RMQ-Titan, Single unit, Design: Flat, Color Lens: yellow, Button plate individual facility for inscription, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller indicator light, Flat Front, flush, yellow, individual facility (part number M30C-FL-Y-*) provides a sleek optical signaling solution for modern control desks requiring clear yellow caution alerts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights (EF006669): 1
  • Colour lens (EF000207): Yellow
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 30 mm
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Type of lens (EF008343): Flat
  • Degree of protection (IP), front side (EF003118): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲
Indicator light, RMQ-Titan, Flat, yellow, individual facility for inscription, Metal bezel
Indicator light, Product range: RMQ-Titan, Single unit, Design: Flat, Colour Lens: yellow, Button plate individual facility for inscription, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Standards: IEC/EN 60947, VDE 0660

Delivery program

Product range
Flat Front (drilling dimensions 30.5 mm)
Basic function
Indicator lights
Mounting hole diameter [⌀]
30.5 mm
Single unit/Complete unit
Single unit
Design
Flat
Colour
Lens
yellow
Lens
Button plate
individual facility for inscription
Degree of Protection
IP66, IP67, IP69
Front ring
Metal bezel
Connection to SmartWire-DT
yes
with SWD-RMQ connections

Technical data

General
Standards
IEC/EN 60947
VDE 0660
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66, IP67, IP69
Ambient temperatureOpen
-25 - +70 °C
Mounting position
As required
Mechanical shock resistance
not planned g
Terminal capacitiesSolid
0.5 - 1.5 mm2
Terminal capacitiesStranded
0.5 - 1.5 mm2
shipping classification
DNV
GL
Contacts
Rated impulse withstand voltage [Uimp]
4000 V AC
Rated insulation voltage [Ui]
250 V
Overvoltage category/pollution degree
III/3

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Front element for indicator light (EC000223)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for warning lights ([email protected] [AKF029014])
Suitable for number of built-in signal lights
1
Colour lens
Yellow
Construction type lens
Round
Hole diameter
30 mm
Width opening
0 mm
Height opening
0 mm
With front ring
Yes
Material front ring
Metal
Colour front ring
Chrome
Type of lens
Flat
Degree of protection (IP), front side
IP67

Approvals

Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Degree of Protection
UL/CSA Type 3R, 4X, 12, 13

Dimensions

with 2 M22-K… standard contact elements
with M22-FK… flat rear contact elements
