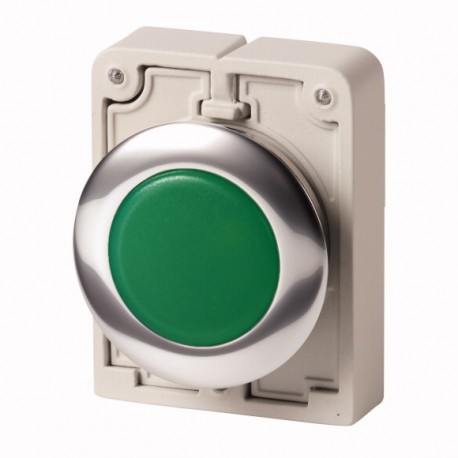

M30C-FL-G-* 183289 Y7-183289 EATON ELECTRIC Indicator light, Flat Front, flush, green, individual facility f..
M30C-FL-G-*
183289
Y7-183289
EATON - MOELLER
1 Pcs.
Indicator light, Flat Front, flush, green, individual facility for inscription
M30C-FL-G-*
Indicator light, RMQ-Titan, Flat, green, individual facility for inscription, Metal bezel
Indicator light, Product range: RMQ-Titan, Single unit, Design: Flat, Color Lens: green, Button plate individual facility for inscription, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Standards: IEC/EN 60947, VDE 0660
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Indicator light, RMQ-Titan, Flat, green, individual facility for inscription, Metal bezel
Indicator light, Product range: RMQ-Titan, Single unit, Design: Flat, Colour Lens: green, Button plate individual facility for inscription, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Standards: IEC/EN 60947, VDE 0660
Delivery program
Product range
Flat Front (drilling dimensions 30.5 mm)
Basic function
Indicator lights
Mounting hole diameter [⌀]
30.5 mm
Single unit/Complete unit
Single unit
Design
Flat
Colour
Lens
green
Lens
Button plate
individual facility for inscription
Degree of Protection
IP66, IP67, IP69
Front ring
Metal bezel
Connection to SmartWire-DT
yes
with SWD-RMQ connections
with SWD-RMQ connections
Technical data
General
Standards
IEC/EN 60947
VDE 0660
VDE 0660
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66, IP67, IP69
Ambient temperatureOpen
-25 - +70 °C
Mounting position
As required
Mechanical shock resistance
not planned g
Terminal capacitiesSolid
0.5 - 1.5 mm2
Terminal capacitiesStranded
0.5 - 1.5 mm2
shipping classification
DNV
GL
GL
Contacts
Rated impulse withstand voltage [Uimp]
4000 V AC
Rated insulation voltage [Ui]
250 V
Overvoltage category/pollution degree
III/3
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Front element for indicator light (EC000223)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for warning lights ([email protected] [AKF029014])
Suitable for number of built-in signal lights
1
Colour lens
Green
Construction type lens
Round
Hole diameter
30 mm
Width opening
0 mm
Height opening
0 mm
With front ring
Yes
Material front ring
Metal
Colour front ring
Chrome
Type of lens
Flat
Degree of protection (IP), front side
IP67
Approvals
Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Degree of Protection
UL/CSA Type 3R, 4X, 12, 13
Dimensions
with 2 M22-K… standard contact elements
with M22-FK… flat rear contact elements
| Feature Name | Feature Value |
|---|---|
| Suitable for number of built-in signal lights (EF006669) | 1 |
| Colour lens (EF000207) | Green |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 30 mm |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Type of lens (EF008343) | Flat |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
