View larger
Images are for illustrative purposes only. Please refer to data sheet for details

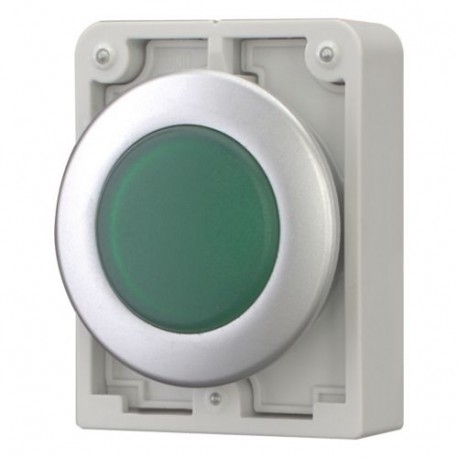

M30C-FL-G 183283 Y7-183283 EATON ELECTRIC Indicator light, Flat Front, flush, green
M30C-FL-G
183283
Y7-183283
EATON - MOELLER
1 Pcs.
Indicator light, Flat Front, flush, green
M30C-FL-G
Eaton Moeller® series M30 Indicator light, RMQ-Titan, Flat, green, Metal bezel
Indicator light, Product range: RMQ-Titan, Single unit, Design: Flat, Color Lens: green, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Standards: IEC/EN 60947, VDE 0660
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M30 Indicator light
Catalog Number
183283
Model Code
M30C-FL-G
EAN
4015081782246
Product Length/Depth
36 mm
Product Height
32 mm
Product Width
46 mm
Product Weight
0.035 kg
Certifications
IEC/EN 60947
VDE 0660
VDE 0660
| Feature Name | Feature Value |
|---|---|
| Suitable for number of built-in signal lights (EF006669) | 1 |
| Colour lens (EF000207) | Green |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 30 mm |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Type of lens (EF008343) | Flat |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
