View larger
Images are for illustrative purposes only. Please refer to data sheet for details

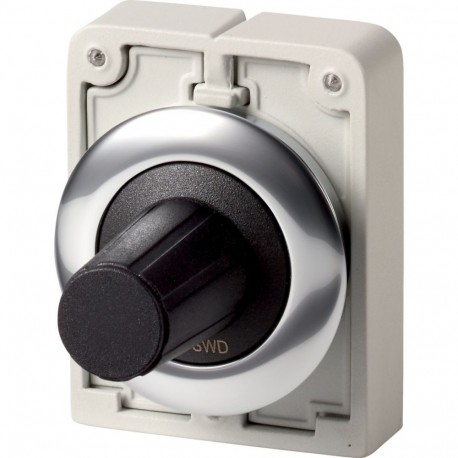

M30C-FINC-SWD 187079 Y7-187079 EATON ELECTRIC SWD encoder, front element, Flat Front
M30C-FINC-SWD
187079
Y7-187079
EATON - MOELLER
1 Pcs.
SWD encoder, front element, Flat Front
M30C-FINC-SWD
Eaton Moeller® series M30 SWD incremental encoder, Metal bezel
SWD incremental encoder, RMQ design: flat front, M30, Mounting hole diameter: 30.5 mm, Subrange: SmartWire-DT RMQ connections, Single unit, Degree of Protection: IP65, Front ring: Metal bezel, Connection to SmartWire-DT: yes, Standards: IEC/EN 60947, Mounting position: As required
Automation > Accessories/spare parts for low-voltage switch technology
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M30 SWD encoder
Catalog Number
187079
Model Code
M30C-FINC-SWD
EAN
4015081821372
Product Length/Depth
36 mm
Product Height
53 mm
Product Width
46 mm
Product Weight
0.055 kg
Certifications
IEC/EN 60947
Catalog Notes
Front element SmartWire-DT encoder
Features & Functions
Bezel color
Metal
Design
Flat front
Functions
For connecting to SmartWire-DT
Actuation function
Actuation function
General
Accessory/spare part type
Other
Degree of protection
IP65
Opening diameter
30.5 mm
Type
Encoder
Ambient conditions, mechanical
Mounting position
As required
Climatic environmental conditions
Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Communication
Connection to SmartWire-DT
Yes
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
