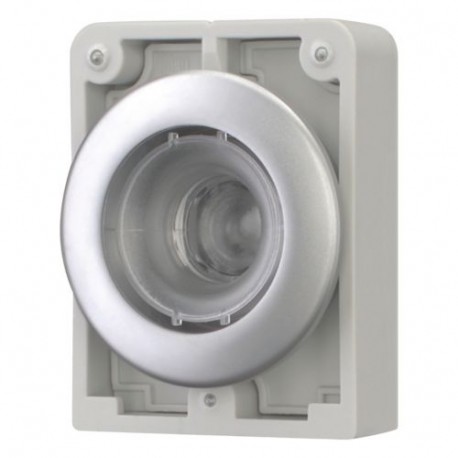

EATON - MOELLER M30C-FDRL-X M30C-FDRL-X 182955 Y7-182955 EATON ELECTRIC Illuminated pushbutton actuators, Flat Front, flush, maintained,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FDRL-X 182955 Y7-182955 EATON ELECTRIC Illuminated pushbutton actuators, Flat Front, flush, maintained,..

M30C-FDRL-X

182955

Y7-182955

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuators, Flat Front, flush, maintained, without button plate M30C-FDRL-X Eaton Moeller® series M30 Illuminated pushbutton actuator, RMQ-Titan, Flat, maintained, Metal bezel Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M30C-FDRL-X is an illuminated pushbutton actuator designed for flush mounting in demanding industrial control panels. Maintained actuators hold their switched position until toggled back, making them suitable for persistent operating modes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Without button plate
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Illuminated pushbutton actuator
Catalog Number
182955
Model Code
M30C-FDRL-X
EAN
4015081778829
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
