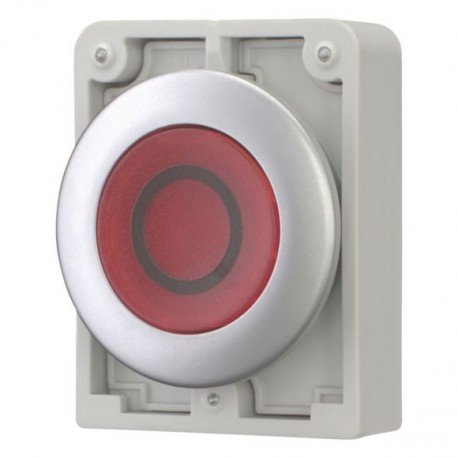

EATON - MOELLER M30C-FDRL-R-X0 M30C-FDRL-R-X0 182933 Y7-182933 EATON ELECTRIC Illuminated pushbutton actuators, Flat Front, flush, maintain.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FDRL-R-X0 182933 Y7-182933 EATON ELECTRIC Illuminated pushbutton actuators, Flat Front, flush, maintain..

M30C-FDRL-R-X0

182933

Y7-182933

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuators, Flat Front, flush, maintained, red, labeled M30C-FDRL-R-X0 Eaton Moeller® series M30 Illuminated pushbutton actuator, RMQ-Titan, Flat, maintained, red, inscribed, Metal bezel Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The M30C-FDRL-R-X0 Eaton Moeller illuminated pushbutton actuator is deployed in industrial control stations to give operators both visual status indication and direct mechanical control over machinery. Latching actuators maintain their switched state upon actuation, requiring a subsequent physical action to release.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Illuminated pushbutton actuator
Catalog Number
182933
Model Code
M30C-FDRL-R-X0
EAN
4015081778607
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
