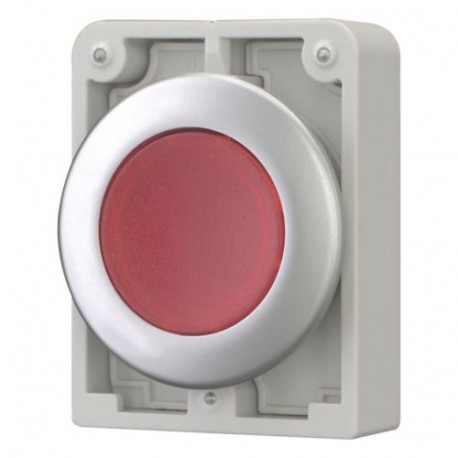

M30C-FDRL-R 182951 Y7-182951 EATON ELECTRIC Illuminated pushbutton actuators, Flat Front, flush, maintained,..
M30C-FDRL-R
182951
Y7-182951
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M30C-FDRL-R illuminated pushbutton actuator features a Flat Front design for modern industrial control panels, providing both tactile operational control and clear status illumination. These units are typically installed on machine consoles, switchboards, and automation systems requiring maintained switching functions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
IEC/EN 60947
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
