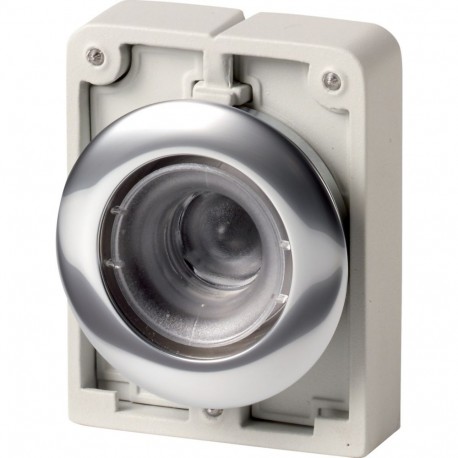

EATON - MOELLER M30C-FDR-X M30C-FDR-X 182948 Y7-182948 EATON ELECTRIC Pushbuttons, Flat Front, flush, maintained, without button plate View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FDR-X 182948 Y7-182948 EATON ELECTRIC Pushbuttons, Flat Front, flush, maintained, without button plate

M30C-FDR-X

182948

Y7-182948

EATON - MOELLER

1 Pcs.

Pushbuttons, Flat Front, flush, maintained, without button plate M30C-FDR-X Eaton Moeller® series M30 Pushbutton, RMQ-Titan, Flat, maintained, Metal bezel Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3 mm, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
182948
Model Code
M30C-FDR-X
EAN
4015081778751
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
VDE 0660
IEC/EN 60947
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

ETIM for 182948 Low-voltage industrial controls and switchgear (EC000221)
Feature Name Feature Value
Colour button (EF000190) Without button plate
Number of command positions (EF001372) 1
Construction type lens (EF006253) Round
Hole diameter (EF000079) 30.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Type of button (EF001546) Flat
Suitable for lighting (EF001142) No
With protective cover (EF005500) No
Labelled (EF001537) No
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Chrome
Degree of protection (IP), front side (EF003118) IP67/IP69K
Degree of protection (NEMA), front side (EF011961) 4X, 13
