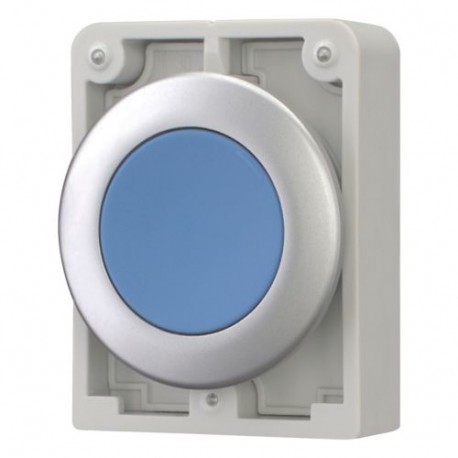

EATON - MOELLER M30C-FDR-B M30C-FDR-B 182947 Y7-182947 EATON ELECTRIC Pushbuttons, Flat Front, flush, maintained, blue, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FDR-B 182947 Y7-182947 EATON ELECTRIC Pushbuttons, Flat Front, flush, maintained, blue, blank

M30C-FDR-B

182947

Y7-182947

EATON - MOELLER

1 Pcs.

Pushbuttons, Flat Front, flush, maintained, blue, blank M30C-FDR-B Eaton Moeller® series M30 Pushbutton, RMQ-Titan, Flat, maintained, Blue, Blank, Metal bezel Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: Blue, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3 mm, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M30C-FDR-B flush pushbutton is a control device deployed in machinery panels and electrical distribution boards to manually govern electrical circuits through maintained contact actions. Flush-mounted actuators are integrated directly into control desks to provide clean, low-profile human-machine interfaces.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Blue
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
182947
Model Code
M30C-FDR-B
EAN
4015081778744
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Warranty
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
