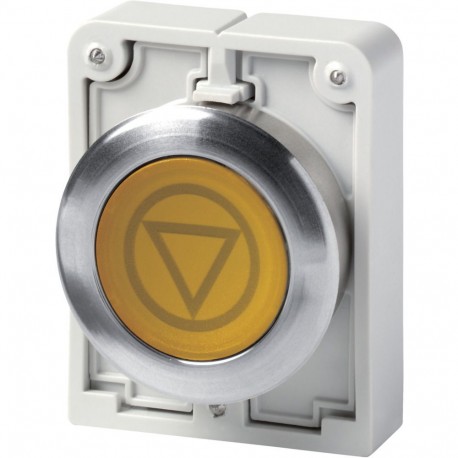

M30C-FDL-Y-X66 197204 EATON ELECTRIC Illuminated pushbutton actuator, Flat Front (drilling dimensions 30.5 m..
M30C-FDL-Y-X66
197204
Y7-197204
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M30C-FDL-Y-X66 is an illuminated pushbutton actuator built for installation in industrial control panels and heavy-duty machinery. Panel builders rely on these components to provide clear visual feedback and manual control functions in demanding operational environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲Delivery program
with SWD-RMQ connections
Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
Shock duration 11 ms
Sinusoidal
according to IEC 60068-2-27 g
GL
