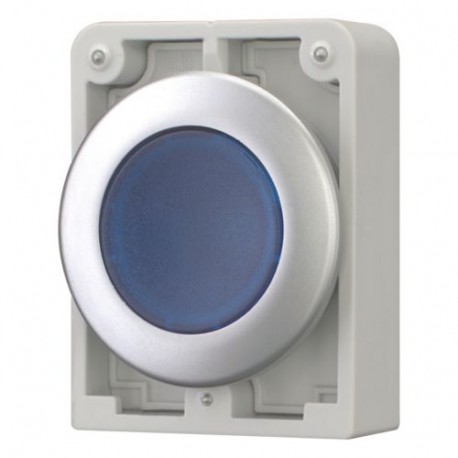

EATON - MOELLER M30C-FDL-B M30C-FDL-B 182940 Y7-182940 EATON ELECTRIC Illuminated pushbutton actuators, Flat Front, flush, momentary, b.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FDL-B 182940 Y7-182940 EATON ELECTRIC Illuminated pushbutton actuators, Flat Front, flush, momentary, b..

M30C-FDL-B

182940

Y7-182940

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuators, Flat Front, flush, momentary, blue, blank M30C-FDL-B Eaton Moeller® series M30 Illuminated pushbutton actuator, RMQ-Titan, Flat, momentary, Blue, Blank, Metal bezel Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flat, momentary, button plate: Blue, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for flush panel mounting, the Eaton Moeller M30C-FDL-B illuminated pushbutton actuator grants operators precise tactile control over automated industrial machinery. Control actuators of this variety are standard across electrical engineering applications for sending momentary control signals to internal controllers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button: Blue
  • Number of command positions: 1
  • Construction type lens: Round
  • Hole diameter: 30.5 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Type of button: Flat
  • Suitable for lighting: Yes
  • With protective cover: No
  • Labelled: No
  • Switching function latching: No
  • Spring-return: Yes
  • With front ring: Yes
  • Material front ring: Metal
  • Colour front ring: Chrome
  • Degree of protection (IP), front side: IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Illuminated pushbutton actuator
Catalog Number
182940
Model Code
M30C-FDL-B
EAN
4015081778676
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Warranty
Certifications
VDE 0660
IEC/EN 60947
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

Features & Functions

Bezel color
Titanium
Bezel material
Metal
Design
Flat
Flat front
Fitted with:
Front ring
Inscription
Blank

General

Degree of protection
IP67
IP66
IP69K
Degree of protection (front side)
IP67/IP69K
NEMA 4X, 13
Lifespan, mechanical
5,000,000 Operations
Opening diameter
30.5 mm
Operating frequency
3600 Operations/h
Product category
RMQ-Titan
Size
Front dimensions: Ø 36 mm
Suitable for
Illumination
Type
Illuminated pushbutton actuator
Used with
M22 contact blocks and indicating lights

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Communication

Connection to SmartWire-DT
Yes
With SWD-RMQ connections

Actuator

Actuating force
5 N
Actuator color
Blue
Actuator function
Spring-return
Momentary

Contacts

Force for positive opening - min
0 N
