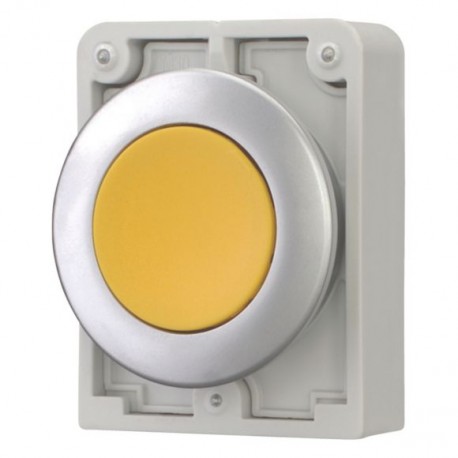

EATON - MOELLER M30C-FD-Y M30C-FD-Y 182920 Y7-182920 EATON ELECTRIC Pushbuttons, Flat Front, flush, momentary, yellow, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FD-Y 182920 Y7-182920 EATON ELECTRIC Pushbuttons, Flat Front, flush, momentary, yellow, blank

M30C-FD-Y

182920

Y7-182920

EATON - MOELLER

1 Pcs.

Pushbuttons, Flat Front, flush, momentary, yellow, blank M30C-FD-Y Eaton Moeller® series M30 Pushbutton, RMQ-Titan, Flat, momentary, yellow, Blank, Metal bezel Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, momentary, button plate: yellow, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3 mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number M30C-FD-Y is a flat front pushbutton designed for momentary operator input within industrial automation stations. These actuators give technicians reliable control over auxiliary circuits and machine routines on factory floors.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Yellow
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
182920
Model Code
M30C-FD-Y
EAN
4015081778478
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
VDE 0660
IEC/EN 60947
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
