M30C-FD-W-X11 182963 Y7-182963 EATON ELECTRIC Pushbuttons, Flat Front, flush, momentary, white, labeled
M30C-FD-W-X11
182963
Y7-182963
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

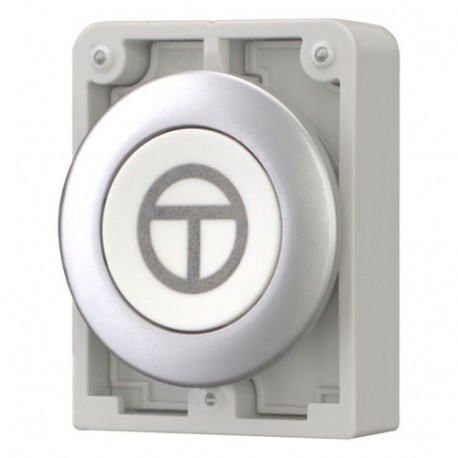

A pushbuttons, flat front device serves as an operator control interface on industrial machinery to initiate momentary electrical commands. The Eaton Moeller part number M30C-FD-W-X11 includes a labeled white flush actuator housed in a durable metal bezel assembly.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
Features & Functions
Flat front
General
IP67
IP69K
NEMA 4X, 13
Ambient conditions, mechanical
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Momentary
