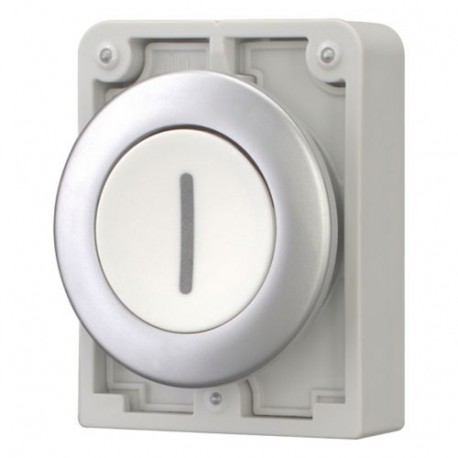

M30C-FD-W-X1 182962 Y7-182962 EATON ELECTRIC Pushbuttons, Flat Front, flush, momentary, white, labeled
M30C-FD-W-X1
182962
Y7-182962
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M30C-FD-W-X1 push button is a standard control device utilized on industrial enclosures and operator panels to send momentary electrical signals to automation logic. Such pushbuttons are integral to human-machine interfaces, allowing operators to manually control motors, start cycles, or reset operational faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified
Features & Functions
Flat front
General
IP69K
IP67
NEMA 4X, 13
Ambient conditions, mechanical
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Momentary
