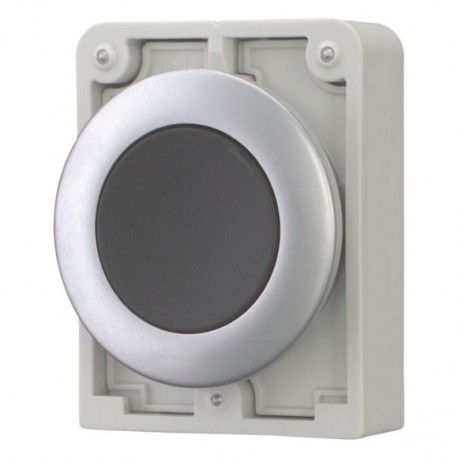

EATON - MOELLER M30C-FD-S M30C-FD-S 182959 Y7-182959 EATON ELECTRIC Pushbuttons, Flat Front, flush, momentary, black, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30C-FD-S 182959 Y7-182959 EATON ELECTRIC Pushbuttons, Flat Front, flush, momentary, black, blank

M30C-FD-S

182959

Y7-182959

EATON - MOELLER

1 Pcs.

Pushbuttons, Flat Front, flush, momentary, black, blank M30C-FD-S Eaton Moeller® series M30 Pushbutton, RMQ-Titan, Flat, momentary, black, Blank, Metal bezel Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, momentary, button plate: black, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 x 3 mm, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller M30C-FD-S Pushbuttons, Flat Front, flush, momentary, black, blank delivers robust operator control for heavy-duty industrial machinery, control panels, and automation systems. These ergonomic pushbuttons enable technicians to input manual commands safely and efficiently during active manufacturing cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Pushbutton
Catalog Number
182959
Model Code
M30C-FD-S
EAN
4015081778867
Product Length/Depth
36 mm
Product Height
30 mm
Product Width
46 mm
Product Weight
0.041 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
DNV
UL File No.: E29184
GL
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05 and 94-M91
CE marking
UL Category Control No.: NKCR
UL Listed
CSA certified

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
