View larger
Images are for illustrative purposes only. Please refer to data sheet for details

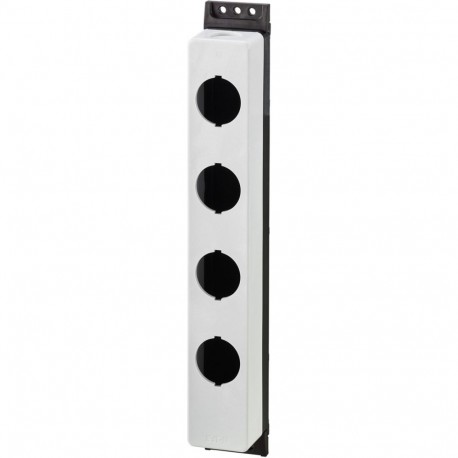

M30-FI4 197238 Y7-197238 EATON ELECTRIC Surface mounting enclosure, flat, 4 mounting locations, M30
M30-FI4
197238
Y7-197238
EATON - MOELLER
1 Pcs.
Surface mounting enclosure, flat, 4 mounting locations, M30
M30-FI4
Eaton Moeller® series M30 Surface mounting enclosure, Insulated material, With high-grade steel screws, Number of locations 4, 4 x 30.5
Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 4, Cable entry: rear: 1 x M20, lateral: 2 x M20 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 4 x 30.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, EMERGENCY STOP/EMERGENCY OFF buttons with yellow set of adapter rings M22Y-R30, Flat rear contacts M22-FK..., Flat Rear LED elements M22-FLED-…
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M30 Accessory Surface mounting enclosure
Catalog Number
197238
Model Code
M30-FI4
EAN
4015080893097
Product Length/Depth
279 mm
Product Height
44 mm
Product Width
43 mm
Product Weight
0.201 kg
Certifications
CSA Class No.: 3211-03
CSA file No. 012528
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified
CSA file No. 012528
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified
Features & Functions
Enclosure color
Gray
Enclosure material
Plastic
Fitted with:
High-grade steel screws
Knockouts
2 x M20 (cable entry knockout at the side, 1 x each side)
1 x M20 (cable entry knockouts at the rear)
1 x M20 (cable entry knockouts at the rear)
Number of locations
4
RAL-number
7035
General
Degree of protection
NEMA 4X
IP67/IP69K
IP67/IP69K
Opening diameter
30 mm
Communication
Connection to SmartWire-DT
No
Contacts
Force for positive opening - min
0 N
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 4 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Other |
| Diameter openings (EF000243) | 30 mm |
| Colour housing cover (EF001373) | Grey |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 43 mm |
| Height (EF000040) | 44 mm |
| Depth (EF000049) | 279 mm |
