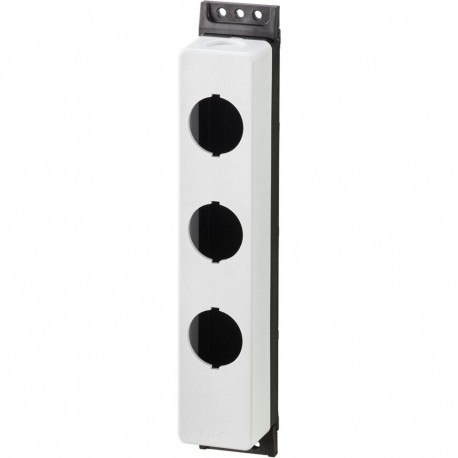

EATON - MOELLER M30-FI3 M30-FI3 197237 Y7-197237 EATON ELECTRIC Surface mounting enclosure, flat, 3 mounting locations, M30 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30-FI3 197237 Y7-197237 EATON ELECTRIC Surface mounting enclosure, flat, 3 mounting locations, M30

M30-FI3

197237

Y7-197237

EATON - MOELLER

1 Pcs.

Surface mounting enclosure, flat, 3 mounting locations, M30 M30-FI3 Eaton Moeller® series M30 Surface mounting enclosure, Insulated material, With high-grade steel screws, Number of locations 3, 3 x 30.5 Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 3, Cable entry: rear: 1 x M20, lateral: 2 x M20 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 3 x 30.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, EMERGENCY STOP/EMERGENCY OFF buttons with yellow set of adapter rings M22Y-R30, Flat rear contact elements M22-FK..., Flat Rear LED elements M22-FLED-…

Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller surface mounting enclosure (M30-FI3) is a low-profile plastic housing engineered to accommodate up to three operator control devices with larger mounting diameters. Technicians use these enclosures to create localized control stations on industrial machinery where reliable environmental protection is essential. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 3
  • Construction type housing (EF004008): Surface mounting housing
  • Housing material (EF001596): Plastic
  • Diameter openings (EF000243): 30 mm
  • Colour housing cover (EF001373): Grey
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X
  • Width (EF000008): 43 mm
  • Height (EF000040): 44 mm
  • Depth (EF000049): 223 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Accessory Surface mounting enclosure
Catalog Number
197237
Model Code
M30-FI3
EAN
4015080893080
Product Length/Depth
223 mm
Product Height
44 mm
Product Width
43 mm
Product Weight
0.166 kg
Certifications
CSA Class No.: 3211-03
CSA file No. 012528
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
