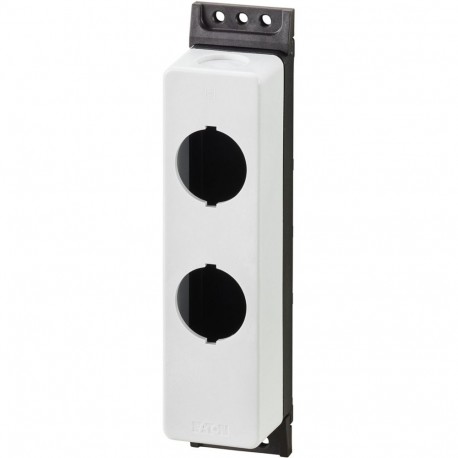

EATON - MOELLER M30-FI2 M30-FI2 197236 Y7-197236 EATON ELECTRIC Surface mounting enclosure, flat, 2 mounting locations, M30 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M30-FI2 197236 Y7-197236 EATON ELECTRIC Surface mounting enclosure, flat, 2 mounting locations, M30

M30-FI2

197236

Y7-197236

EATON - MOELLER

1 Pcs.

Surface mounting enclosure, flat, 2 mounting locations, M30 M30-FI2 Eaton Moeller® series M30 Surface mounting enclosure, Insulated material, With high-grade steel screws, Number of locations 2, 2 x 30.5 Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 2, Cable entry: rear: 1 x M20, lateral: 2 x M20 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 2 x 30.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, EMERGENCY STOP/EMERGENCY OFF buttons with yellow set of adapter rings M22Y-R30, Flat rear contacts M22-FK..., Flat Rear LED elements M22-FLED-…

Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M30-FI2 197236 Y7-197236 surface mounting enclosure, flat, 2 mounting locations, M30 is a low-profile plastic housing configured to hold two 30mm control devices. These enclosures are typically mounted directly onto machine frames or control desks for ergonomic operator access.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 2
  • Construction type housing (EF004008): Surface mounting housing
  • Housing material (EF001596): Plastic
  • Diameter openings (EF000243): 30 mm
  • Colour housing cover (EF001373): Grey
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X
  • Width (EF000008): 43 mm
  • Height (EF000040): 44 mm
  • Depth (EF000049): 166 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M30 Accessory Surface mounting enclosure
Catalog Number
197236
Model Code
M30-FI2
EAN
4015080893073
Product Length/Depth
166 mm
Product Height
44 mm
Product Width
43 mm
Product Weight
0.13 kg
Certifications
CSA Class No.: 3211-03
CSA file No. 012528
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
