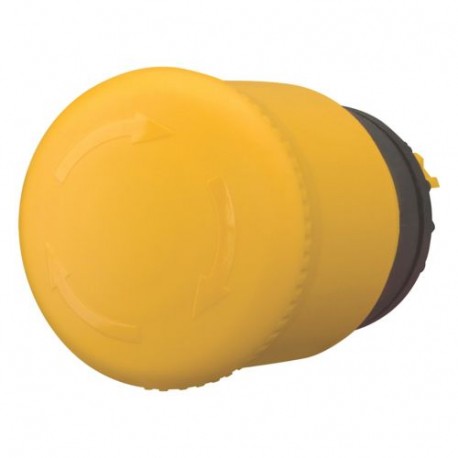

EATON - MOELLER M22Y-PVT M22Y-PVT 147403 Y7-147403 EATON ELECTRIC Stop/halt pushbutton, non-illuminated, yellow View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22Y-PVT 147403 Y7-147403 EATON ELECTRIC Stop/halt pushbutton, non-illuminated, yellow

M22Y-PVT

147403

Y7-147403

EATON - MOELLER

1 Pcs.

Stop/halt pushbutton, non-illuminated, yellow M22Y-PVT Eaton Moeller® series M22 HALT/STOP-Button, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Turn-to-release function, yellow, yellow, RAL 9005 HALT/STOP-Button, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Turn-to-release function, Color Mushroom head: yellow, Color Base: yellow, Color RAL Value: RAL 1004, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22Y-PVT stop and halt pushbutton serves as a clear operator control device for signaling shutdown commands across industrial machinery installations. These yellow latching units provide reliable manual intervention capabilities on control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Yellow
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 38 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): No
  • Suitable for emergency stop (EF001433): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
147403
Model Code
M22Y-PVT
EAN
4015081439010
Product Length/Depth
38 mm
Product Height
70 mm
Product Width
38 mm
Product Weight
0.045 kg
Certifications
CSA Class No.: 3211-03
UL
IEC/EN 60947-5
CE
CSA File No.: 012528
UL 508
UL Category Control No.: NKCR
VDE 0660
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA
IEC/EN 60947
DNV
GL
LR
