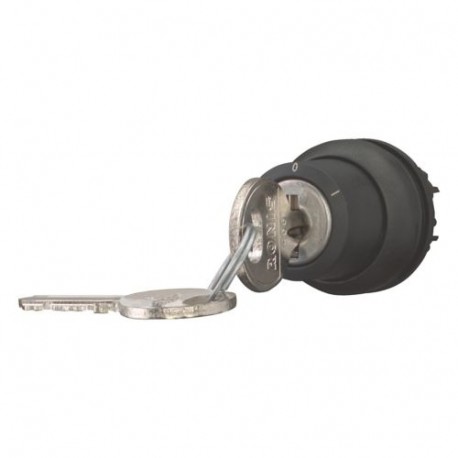

EATON - MOELLER M22S-WS-RS M22S-WS-RS 171148 Y7-171148 EATON ELECTRIC Key-operated pushbutton (Ronis 455), 2 positions View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WS-RS 171148 Y7-171148 EATON ELECTRIC Key-operated pushbutton (Ronis 455), 2 positions

M22S-WS-RS

171148

Y7-171148

EATON - MOELLER

1 Pcs.

Key-operated pushbutton (Ronis 455), 2 positions M22S-WS-RS Eaton Moeller® series M22 Key-operated actuator, momentary, 2 positions, Ronis 455, Key withdrawable: 0, Bezel: black Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, momentary, Not suitable for master key systems, 2 positions, Lock mechanism: Ronis 455, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22S-WS-RS key-operated pushbutton utilizes a standardized Ronis lock mechanism to deliver secure mode selection on industrial electrical enclosures. Panel builders integrate this unit to guarantee that only authorized operators with the correct key can initiate designated machine cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
171148
Model Code
M22S-WS-RS
EAN
4015081676385
Product Length/Depth
48 mm
Product Height
59 mm
Product Width
46 mm
Product Weight
0.037 kg
Certifications
CE
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA
CSA-C22.2 No. 94-91
VDE 0660
CSA File No.: 012528
IEC/EN 60947-5
UL
UL Category Control No.: NKCR
CSA Class No.: 3211-03
UL 508
UL File No.: E29184
DNV
GL
LR
