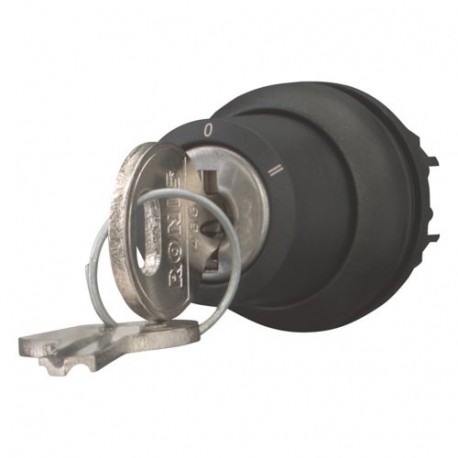

M22S-WRS3-RS-A1 171156 Y7-171156 EATON ELECTRIC Key-operated pushbutton (Ronis 455), 3 positions
M22S-WRS3-RS-A1
171156
Y7-171156
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22S-WRS3-RS-A1 is a 3-position key-operated pushbutton designed for industrial control systems to manage multiple operating modes securely. Such switches are ideal for automated machinery requiring restricted access for mode changes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
UL
VDE 0660
UL 508
CSA-C22.2 No. 14-05
CE
CSA Class No.: 3211-03
IEC/EN 60947
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 94-91
UL File No.: E29184
DNV
GL
LR
Features & Functions
Classical
Front ring
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Switching function latching
Key withdrawable in position 0
