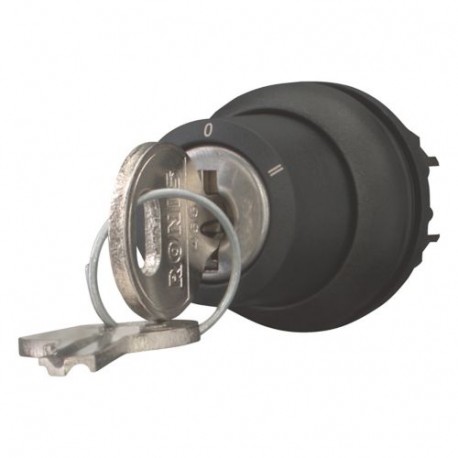

M22S-WRS3-RS 171154 Y7-171154 EATON ELECTRIC Key-operated pushbutton (Ronis 455), 3 positions
M22S-WRS3-RS
171154
Y7-171154
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A key-operated pushbutton restricts switch actuation to authorized operators, safeguarding automated machinery against unauthorized mode changes. The Eaton Moeller M22S-WRS3-RS integrates securely into standard industrial control enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC/EN 60947-5
UL File No.: E29184
CSA-C22.2 No. 94-91
VDE 0660
CE
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA Class No.: 3211-03
IEC/EN 60947
UL 508
CSA
UL
DNV
GL
LR
Features & Functions
Classical
Plunger bridge for the middle contact
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Key withdrawable in position 2
Key withdrawable in position 0
Switching function latching
Key withdrawable in position 1
