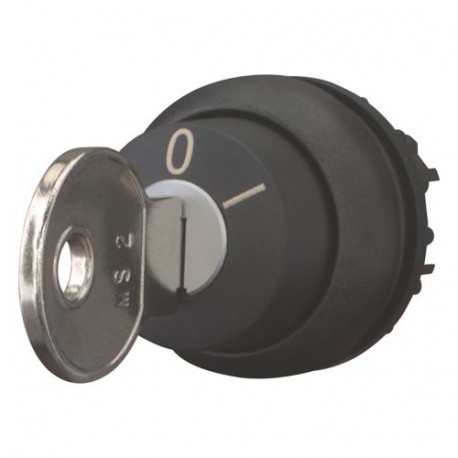

EATON - MOELLER M22S-WRS-MS2 M22S-WRS-MS2 111772 Y7-111772 EATON ELECTRIC Key-operated actuator, 2 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WRS-MS2 111772 Y7-111772 EATON ELECTRIC Key-operated actuator, 2 positions, maintained

M22S-WRS-MS2

111772

Y7-111772

EATON - MOELLER

1 Pcs.

Key-operated actuator, 2 positions, maintained M22S-WRS-MS2 Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS2, Key withdrawable: 0, I, Bezel: black Key-operated actuator for single locking (not for locking systems) with degree of protection IP66. Ready for operation with the lock mechanism MS2. Option: afterwards, the maintained and spring-return function as well as key withdrawal can be changed coding set available as an accessory.

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22S-WRS-MS2 is a key-operated actuator designed for secure manual switching operations on control panels and industrial machinery. Operators use control elements like this to restrict access and safely manage operational modes within automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111772
Model Code
M22S-WRS-MS2
EAN
4015081113224
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Certifications
DNV
GL
IEC/EN 60947
LR
VDE 0660
