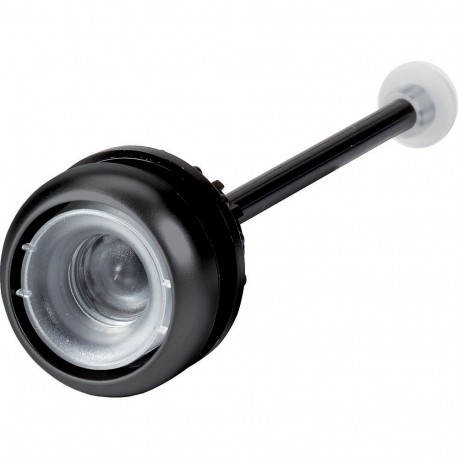

M22S-DZ-X 259522 M22S-DZ-XQ EATON ELECTRIC Release pushbutton, without button plate, Bezel: black
M22S-DZ-X
259522
Y7-259522
EATON - MOELLER
1 Pcs.
Release pushbutton, without button plate, Bezel: black
Release pushbutton, Basic function accessories: Reset buttons, Accessories: Pushbuttons, Function: For enclosed overload relays, For enclosed overload relays, Mounting diameter: 22.3 mm, Mounting diameter: 22.3 mm, Without button plate, add button plate., Front ring: Bezel: black, Connection to SmartWire-DT: no, For use with: ZW7..., ZE, Z5, ZB12, ZB32, ZB65, ZB150
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Release pushbutton, without button plate, Bezel: black
Release pushbutton, Basic function accessories: Reset buttons, Accessories: Pushbuttons, Function: For enclosed overload relays, For enclosed overload relays, Mounting diameter: 22.3 mm, Mounting diameter: 22.3 mm, Without button plate, add button plate., Front ring: Bezel: black, Connection to SmartWire-DT: no, For use with: ZW7..., ZE, Z5, ZB12, ZB32, ZB65, ZB150
Delivery program
Accessories
General accessories
Product range
Accessories
Basic function accessories
Reset buttons
Accessories
Pushbuttons
Function
For enclosed overload relays
For enclosed overload relays
Mounting diameter: 22.3 mm
Mounting diameter: 22.3 mm
Description
Mounting diameter: 22.3 mm
Button plate
Without button plate, add button plate.
Front ring
Bezel: black
Connection to SmartWire-DT
no
For use with
ZW7...
ZE
Z5
ZB12
ZB32
ZB65
ZB150
ZE
Z5
ZB12
ZB32
ZB65
ZB150
Technical data
General
Ambient temperatureOpen
-25 - +70 °C
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 8.0
Low-voltage industrial components (EG000017) / Front element for push button (EC000221)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for push-button actuators ([email protected] [AKF028014])
Colour button
Without button plate
Number of command positions
1
Construction type lens
Round
Hole diameter
22 mm
Width opening
0 mm
Height opening
0 mm
Type of button
Flat
Suitable for illumination
No
With protective cover
No
Labelled
No
Switching function latching
No
Spring-return
Yes
With front ring
Yes
Material front ring
Plastic
Colour front ring
Black
Degree of protection (IP), front side
IP67
Degree of protection (NEMA), front side
4X
Approvals
Product Standards
UL 508; CSA-C22.2 No. 14; IEC/EN 60947; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Specially designed for North America
No
Dimensions
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Without button plate |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | No |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Black |
| Degree of protection (IP), front side (EF003118) | IP67 |
| Degree of protection (NEMA), front side (EF011961) | 4X |
