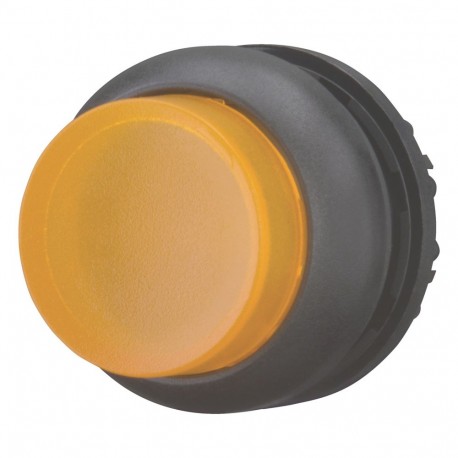

M22S-DLH-A 167434 Y7-167434 EATON ELECTRIC Illuminated pushbutton actuator, raised, amber
M22S-DLH-A
167434
Y7-167434
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22S-DLH-A 167434 Y7-167434 EATON ELECTRIC Illuminated pushbutton actuator, raised, amber provides high-visibility status signaling and operator command functions on industrial control panels. Amber illuminated actuators are commonly specified to indicate caution states or transitional operating modes in automated systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Orange
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
IEC/EN 60947
DNV
GL
LR
Features & Functions
Classical
General
IP67
IP66
IP67/IP69K
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Spring-return
