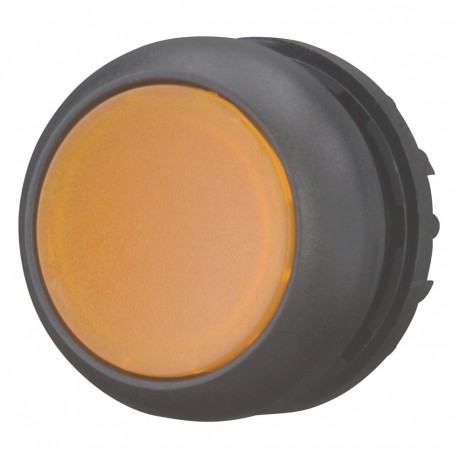

M22S-DL-A 167430 Y7-167430 EATON ELECTRIC Illuminated pushbutton actuator, flush, amber
M22S-DL-A
167430
Y7-167430
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22S-DL-A illuminated pushbutton actuator acts as an operator control device designed for flush mounting on industrial control stations. It provides visual feedback and manual switching capabilities for factory automation lines, power distribution systems, and machinery control circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Orange
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
IP69K
IP67
IP67/IP69K
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Spring-return
