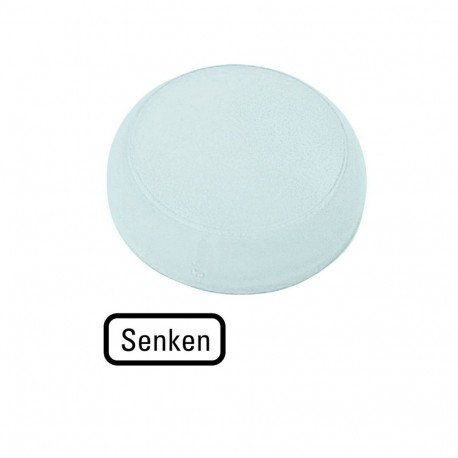

EATON - MOELLER M22-XL-W-D18 M22-XL-W-D18 218411 Y7-218411 EATON ELECTRIC Lens, indicator light white, flush, DECREASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XL-W-D18 218411 Y7-218411 EATON ELECTRIC Lens, indicator light white, flush, DECREASE

M22-XL-W-D18

218411

Y7-218411

EATON - MOELLER

1 Pcs.

Lens, indicator light white, flush, DECREASE M22-XL-W-D18 Eaton Moeller® series M22 Lens, indicator light white, flush, DECREASE Ready-inscribed flat RMQ-Titan indicator light color lens. Fits on the indicator light front element. For instance can be used as a substitute and also to change an indicator light's color. Is approved for worldwide use.

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-XL-W-D18 lens, indicator light white, flush, decrease is an optical component for industrial pilot devices that provides clear visual signaling of parameter adjustments on control desks. Technicians snap these labeled caps onto modular indicator bodies to standardize machine operation interfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour lens (EF000207): White
  • Shape of lens (EF001371): Round
  • Construction type (EF000767): Flat
  • Labelled (EF001537): Yes
  • Built-in diameter (EF000943): 22.5 mm
  • Diameter (EF000551): 29.6 mm
  • Width (EF000008): 29 mm
  • Height (EF000040): 9 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Lens
Catalog Number
218411
Model Code
M22-XL-W-D18
EAN
4015082184117
Product Length/Depth
29 mm
Product Height
9 mm
Product Width
29 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
