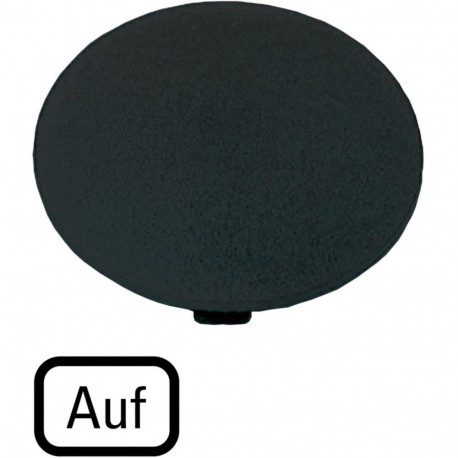

EATON - MOELLER M22-XDP-S-D3 M22-XDP-S-D3 218273 Y7-218273 EATON ELECTRIC M22-XDP-S-D3Q Button plate, mushroom black, UP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDP-S-D3 218273 Y7-218273 EATON ELECTRIC M22-XDP-S-D3Q Button plate, mushroom black, UP

M22-XDP-S-D3

218273

Y7-218273

EATON - MOELLER

10 Pcs.

M22-XDP-S-D3Q Button plate, mushroom black, UP M22-XDP-S-D3 Eaton Moeller® series M22 Button plate, mushroom black, UP M22-XDP-S-D3 Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Inscription: Auf, Selection to: Text, For use with: M22(S)-D(R)P-…, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-XDP-S-D3 mushroom button plate mounts to specialized actuators to provide clear upward directional control on industrial consoles. Maintenance personnel and machine operators rely on these labeled caps for precise crane or hoist movements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Literal imprint (EF015918): Up
  • Language of the imprint (EF015922): German
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): No
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): Yes
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218273
Model Code
M22-XDP-S-D3
EAN
4015082182731
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
