View larger
Images are for illustrative purposes only. Please refer to data sheet for details

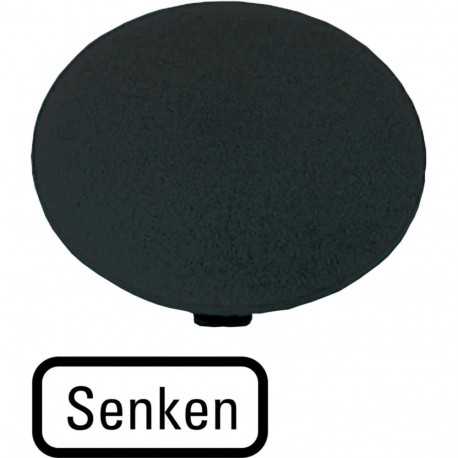

M22-XDP-S-D18 218280 Y7-218280 EATON ELECTRIC M22-XDP-S-D18Q Button plate, mushroom black, DECREASE
M22-XDP-S-D18
218280
Y7-218280
EATON - MOELLER
1 Pcs.
M22-XDP-S-D18Q Button plate, mushroom black, DECREASE
M22-XDP-S-D18
Eaton Moeller® series M22 Button plate, mushroom black, DECREASE
Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Inscription: Senken, Selection to: Text, For use with: M22(S)-D(R)P-…, Connection to SmartWire-DT: no
Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218280
Model Code
M22-XDP-S-D18
EAN
4015082182809
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
| Feature Name | Feature Value |
|---|---|
| Shape (EF000051) | Round |
| Construction type (EF000767) | Flat |
| Colour (EF000007) | Black |
| Literal imprint (EF015918) | Lower |
| Language of the imprint (EF015922) | German |
| Imprint ISO symbols (EF006094) | None |
| Imprint (EF000131) | Other |
| Engravable (EF005877) | No |
| Programme diameter (EF001539) | 22 mm |
| Width (EF000008) | 24 mm |
| Height (EF000040) | 9 mm |
| Outer diameter (EF000015) | 22.5 mm |
| Suitable for push button (EF007244) | No |
| Suitable for illuminated push buttons (EF007254) | No |
| Suitable for indicator light (EF007255) | No |
| Suitable for mushroom head push button (EF007257) | Yes |
| Suitable for signalling lamp (EF007261) | No |
| Suitable for selector switch (EF007263) | No |
