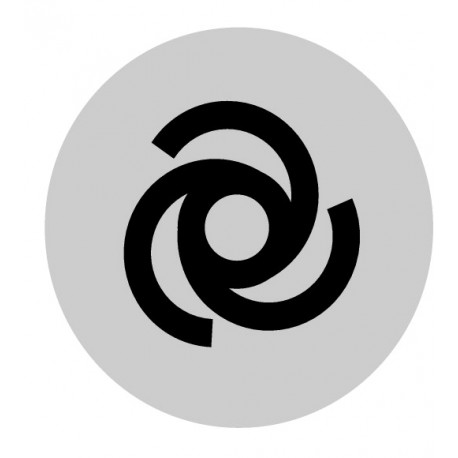

EATON - MOELLER M22-XDLH-W-X10 M22-XDLH-W-X10 218351 Y7-218351 EATON ELECTRIC Lens, indicator Outgoing White Symbol sequence automatic View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDLH-W-X10 218351 Y7-218351 EATON ELECTRIC Lens, indicator Outgoing White Symbol sequence automatic

M22-XDLH-W-X10

218351

Y7-218351

EATON - MOELLER

1 Pcs.

Lens, indicator; Outgoing; White; Symbol sequence automatic M22-XDLH-W-X10 Eaton Moeller® series M22 Button lens, raised white, automatic sequence symbol Button lens, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Extended, Name: Automatic, Selection to: Symbol, For use with: M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X, Connection to SmartWire-DT: no

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-XDLH-W-X10 white raised indicator lens featuring an automatic sequence symbol provides high-visibility status notification on complex automated production lines. Raised construction allows operators to easily view light signals from various angles across the factory floor.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour lens (EF000207): White
  • Shape of lens (EF001371): Round
  • Construction type (EF000767): High
  • Labelled (EF001537): Yes
  • Built-in diameter (EF000943): 22.5 mm
  • Diameter (EF000551): 22.2 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button lens
Catalog Number
218351
Model Code
M22-XDLH-W-X10
EAN
4015082183516
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
