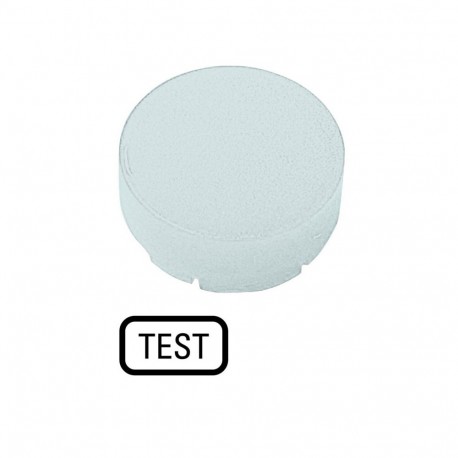

EATON - MOELLER M22-XDLH-W-GB9 M22-XDLH-W-GB9 218376 Y7-218376 EATON ELECTRIC Lens, indicator Outgoing White TEST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDLH-W-GB9 218376 Y7-218376 EATON ELECTRIC Lens, indicator Outgoing White TEST

M22-XDLH-W-GB9

218376

Y7-218376

EATON - MOELLER

1 Pcs.

Lens, indicator; Outgoing; White; TEST M22-XDLH-W-GB9 Eaton Moeller® series M22 Button lens, raised white, TEST Button lens, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Extended, Inscription: TEST, Selection to: Text, For use with: M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X, Connection to SmartWire-DT: no

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller lens, indicator Outgoing White TEST (M22-XDLH-W-GB9) provides clear visual status indication for control circuits on industrial switchboards and automation equipment. Such optical components ensure operators can instantly distinguish machine states, alarms, or operational modes from a distance. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour lens (EF000207): White
  • Shape of lens (EF001371): Round
  • Construction type (EF000767): High
  • Labelled (EF001537): Yes
  • Built-in diameter (EF000943): 22.5 mm
  • Diameter (EF000551): 22.2 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button lens
Catalog Number
218376
Model Code
M22-XDLH-W-GB9
EAN
4015082183769
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
