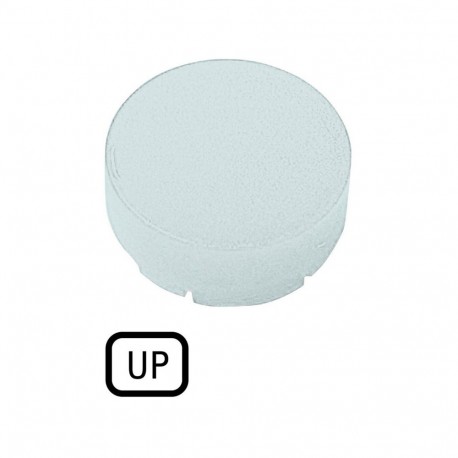

EATON - MOELLER M22-XDLH-W-GB3 M22-XDLH-W-GB3 218374 Y7-218374 EATON ELECTRIC Lens, indicator Outgoing White UP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDLH-W-GB3 218374 Y7-218374 EATON ELECTRIC Lens, indicator Outgoing White UP

M22-XDLH-W-GB3

218374

Y7-218374

EATON - MOELLER

1 Pcs.

Lens, indicator; Outgoing; White; UP M22-XDLH-W-GB3 Eaton Moeller® series M22 Button lens, raised white, UP Button lens, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Extended, Inscription: UP, Selection to: Text, For use with: M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X, Connection to SmartWire-DT: no

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-XDLH-W-GB3 lens, indicator Outgoing White UP is a raised optical accessory designed for mounting on control switches to denote upward system motion. These components ensure machine operators can easily identify specific functional pathways on electrical enclosures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour lens (EF000207): White
  • Shape of lens (EF001371): Round
  • Construction type (EF000767): High
  • Labelled (EF001537): Yes
  • Built-in diameter (EF000943): 22.5 mm
  • Diameter (EF000551): 22.2 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button lens
Catalog Number
218374
Model Code
M22-XDLH-W-GB3
EAN
4015082183745
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
