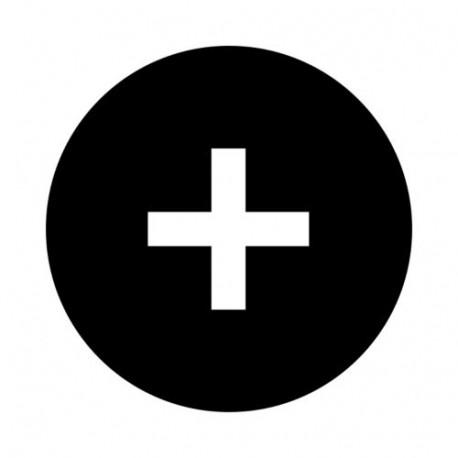

M22-XDH-S-X4 218215 Y7-218215 EATON ELECTRIC M22-XDH-S-X4Q Button plate, raised black, +
M22-XDH-S-X4
218215
Y7-218215
EATON - MOELLER
1 Pcs.
Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller M22-XDH-S-X4 button plate offers an elevated profile designed to snap securely onto industrial control actuators, providing intuitive symbol identification for equipment operators. Raised components of this style improve tactile recognition on complex electrical distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Shape (EF000051): Round
- Construction type (EF000767): High
- Colour (EF000007): Black
- Imprint ISO symbols (EF006094): Symbol " + "
- Engravable (EF005877): No
- Programme diameter (EF001539): 22 mm
- Width (EF000008): 24 mm
- Height (EF000040): 9 mm
- Outer diameter (EF000015): 22.5 mm
- Suitable for push button (EF007244): Yes
- Suitable for illuminated push buttons (EF007254): No
- Suitable for indicator light (EF007255): No
- Suitable for mushroom head push button (EF007257): No
- Suitable for signalling lamp (EF007261): No
- Suitable for selector switch (EF007263): No
