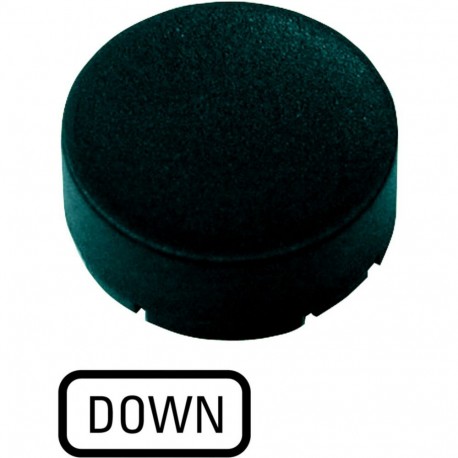

EATON - MOELLER M22-XDH-S-GB4 M22-XDH-S-GB4 218245 Y7-218245 EATON ELECTRIC M22-XDH-S-GB4Q Button plate, raised black, DOWN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDH-S-GB4 218245 Y7-218245 EATON ELECTRIC M22-XDH-S-GB4Q Button plate, raised black, DOWN

M22-XDH-S-GB4

218245

Y7-218245

EATON - MOELLER

1 Pcs.

M22-XDH-S-GB4Q Button plate, raised black, DOWN M22-XDH-S-GB4 Eaton Moeller® series M22 Button plate, raised black, DOWN Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Extended, Inscription: DOWN, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for control station enclosures, the Eaton Moeller M22-XDH-S-GB4 button plate provides clear textual labeling for operator commands on machinery. Such components attach to standard push buttons to guide machine operators during routine processes and emergency interventions alike.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): High
  • Colour (EF000007): Black
  • Literal imprint (EF015918): Down
  • Language of the imprint (EF015922): English
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218245
Model Code
M22-XDH-S-GB4
EAN
4015082182458
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
1.6 g
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
