EATON - MOELLER M22-XDH-S-D4 M22-XDH-S-D4 218231 Y7-218231 EATON ELECTRIC M22-XDH-S-D4Q Button plate, raised black, AB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

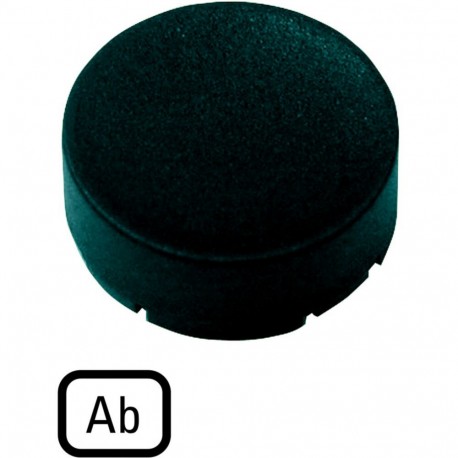

M22-XDH-S-D4 218231 Y7-218231 EATON ELECTRIC M22-XDH-S-D4Q Button plate, raised black, AB

M22-XDH-S-D4

218231

Y7-218231

EATON - MOELLER

1 Pcs.

M22-XDH-S-D4Q Button plate, raised black, AB M22-XDH-S-D4 Eaton Moeller® series M22 Button plate, raised black, AB Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Extended, Inscription: Ab, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-XDH-S-D4 is a raised black button plate featuring a German AB inscription for localized industrial panels. Control architects integrate these labeled plates to support regional language requirements on equipment interfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): High
  • Colour (EF000007): Black
  • Literal imprint (EF015918): Down
  • Language of the imprint (EF015922): German
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218231
Model Code
M22-XDH-S-D4
EAN
4015082182311
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
1.6 g
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
