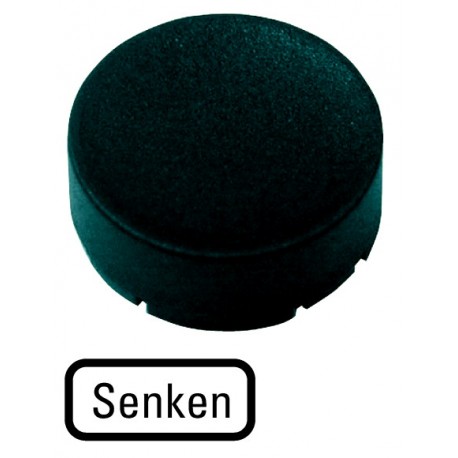

M22-XDH-S-D18 218238 M22-XDH-S-D18Q EATON ELECTRIC M22-XDH-S-D18Q Button plate, raised black, DECREASE
M22-XDH-S-D18
218238
M22-XDH-S-D18Q
EATON - MOELLER
1 Pcs.
Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Button plate, raised black, DECREASE (part number M22-XDH-S-D18) mounts onto control actuators to clearly label decrement functions on industrial control desks. Raised operator caps provide distinct tactile feedback in complex control environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Shape (EF000051): Round
- Construction type (EF000767): High
- Colour (EF000007): Black
- Engravable (EF005877): No
- Programme diameter (EF001539): 22 mm
- Width (EF000008): 24 mm
- Height (EF000040): 9 mm
- Outer diameter (EF000015): 22 mm
- Suitable for push button (EF007244): Yes
- Suitable for illuminated push buttons (EF007254): No
- Suitable for indicator light (EF007255): No
- Suitable for mushroom head push button (EF007257): No
- Suitable for signalling lamp (EF007261): No
- Suitable for selector switch (EF007263): No
More info
▲Delivery program
> 5 characters: letter height 3 mm
M22(S)-DR-X
M22-DG-X
M30C-FD-X
M30C-FDR-X
