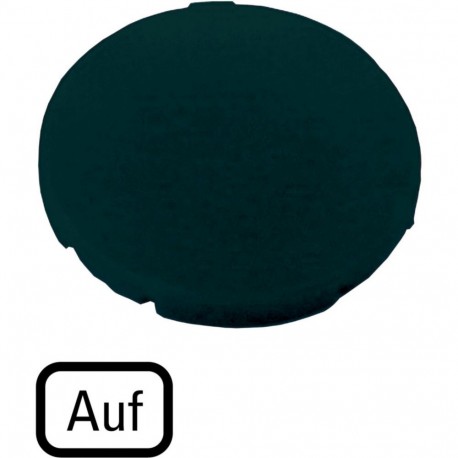

M22-XD-S-D3 218185 Y7-218185 EATON ELECTRIC M22-XD-S-D3Q Button plate, flat black, UP
M22-XD-S-D3
218185
Y7-218185
EATON - MOELLER
10 Pcs.
Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for control system interfaces, the Eaton Moeller Button plate, flat black, UP (part number M22-XD-S-D3) snaps onto standard pushbuttons to give operators unambiguous directional guidance. These plates are ideal for managing industrial positioning applications and machinery movements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Shape (EF000051): Round
- Construction type (EF000767): Flat
- Colour (EF000007): Black
- Literal imprint (EF015918): Up
- Language of the imprint (EF015922): German
- Engravable (EF005877): No
- Programme diameter (EF001539): 22 mm
- Width (EF000008): 24 mm
- Height (EF000040): 3 mm
- Outer diameter (EF000015): 22.5 mm
- Suitable for push button (EF007244): Yes
- Suitable for illuminated push buttons (EF007254): No
- Suitable for indicator light (EF007255): No
- Suitable for mushroom head push button (EF007257): No
- Suitable for signalling lamp (EF007261): No
- Suitable for selector switch (EF007263): No
More info
▲Individual inscription possible: ≤ 5 characters: letter height 5 mm
Up
