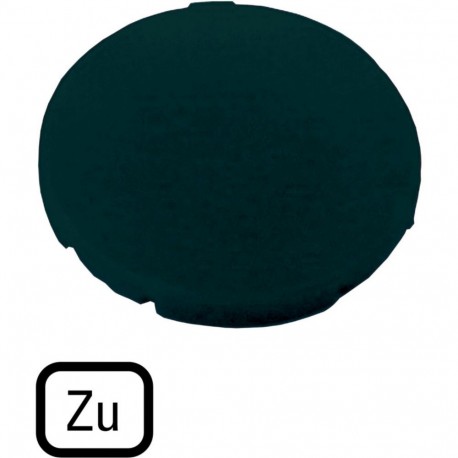

EATON - MOELLER M22-XD-S-D2 M22-XD-S-D2 218184 Y7-218184 EATON ELECTRIC M22-XD-S-D2Q Button plate, flat black, TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XD-S-D2 218184 Y7-218184 EATON ELECTRIC M22-XD-S-D2Q Button plate, flat black, TO

M22-XD-S-D2

218184

Y7-218184

EATON - MOELLER

10 Pcs.

M22-XD-S-D2Q Button plate, flat black, TO M22-XD-S-D2 Eaton Moeller® series M22 Button plate, flat black, TO Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: Zu, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller button plate, part number M22-XD-S-D2, is a round mechanical component utilized in control panels to label and cap operator push buttons. Such faceplates provide clear functional identification for operators interacting with industrial machinery and electrical distribution systems. Component pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Literal imprint (EF015918): Close
  • Language of the imprint (EF015922): German
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218184
Model Code
M22-XD-S-D2
EAN
4015082181840
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
