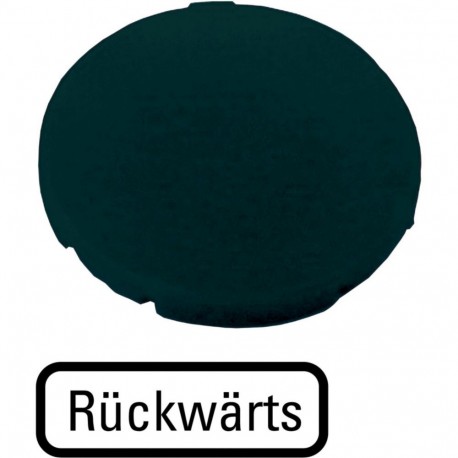

EATON - MOELLER M22-XD-S-D16 M22-XD-S-D16 218191 Y7-218191 EATON ELECTRIC M22-XD-S-D16Q Button plate, flat black, REVERSE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XD-S-D16 218191 Y7-218191 EATON ELECTRIC M22-XD-S-D16Q Button plate, flat black, REVERSE

M22-XD-S-D16

218191

Y7-218191

EATON - MOELLER

10 Pcs.

M22-XD-S-D16Q Button plate, flat black, REVERSE M22-XD-S-D16 Eaton Moeller® series M22 Button plate, flat black, RÜCKWÄRTS Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: Rückwärts, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-XD-S-D16 is a flat black button plate featuring a reverse literal imprint for standard control actuators. Button plates and inserts snap onto compatible operator heads within industrial control desks to clearly designate specific machine functions to operators on the factory floor. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Literal imprint (EF015918): Reverse
  • Language of the imprint (EF015922): German
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218191
Model Code
M22-XD-S-D16
EAN
4015082181918
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
