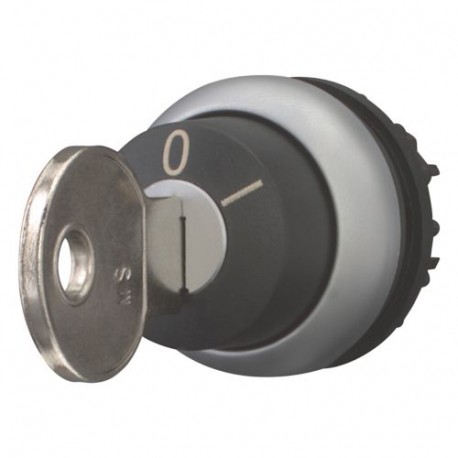

M22-WS-MS5 111792 Y7-111792 EATON ELECTRIC Key-operated actuator, 2 positions, momentary
M22-WS-MS5
111792
Y7-111792
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number M22-WS-MS5 is a key-operated actuator utilized in secure industrial control environments to govern operational workflows and limit access to sensitive equipment settings.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CSA File No.: 012528
IEC/EN 60947-5
CSA Class No.: 3211-03
UL File No.: E29184
CSA
UL 508
UL
IEC/EN 60947
CE
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Key withdrawable in position 0
Spring-return
